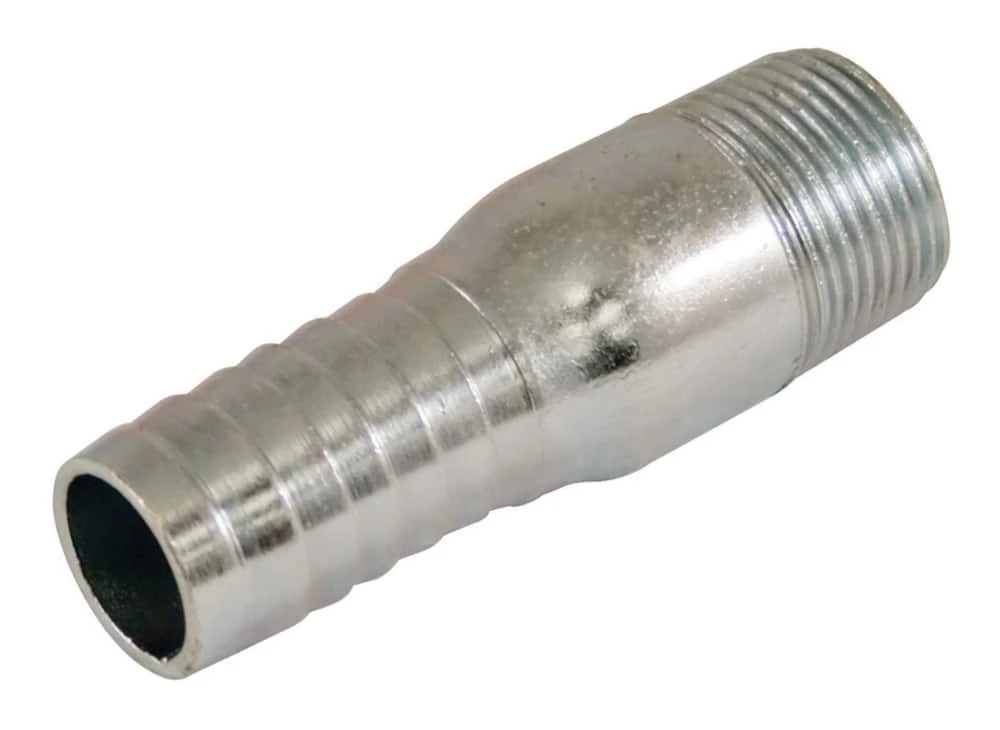

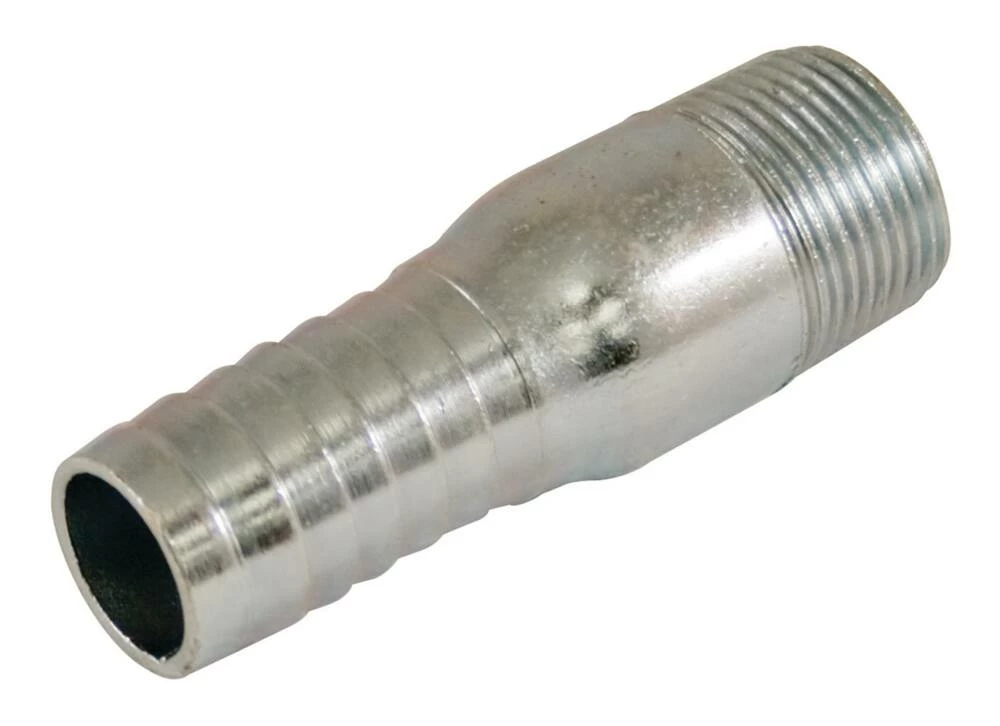

Aqua-Dynamic Galvanized Adapter Insert, 3/4-in

Features

• Aqua-Dynamic Galvanized Adapter Insert for secure pipe connections
• For use in drainage and potable water applications
• MPT (Male Pipe Thread) on one end
• Size: 3/4″

Specifications

• Accessories List: No Accessories Included
• Actual Inner Diameter (cm): 1.90 cm
• Actual Inner Diameter (in): 0.75 in
• Actual Inner Diameter (mm): 19.00 mm
• Actual Outer Diameter (cm): 2.30 cm
• Actual Outer Diameter (in): 0.91 in
• Actual Outer Diameter (mm): 23.00 mm
• Advanced Features: No Advanced Features
• Assembled Height (cm): 2.54 cm
• Assembled Height (ft): 0.08 ft
• Assembled Height (in): 1.00 in
• Assembled Length (cm): 7.87 cm
• Assembled Length (ft): 0.26 ft
• Assembled Length (in): 3.10 in
• Assembled Weight (kg): 0.09 kg
• Assembled Weight (lb): 0.2 lb
• Assembled Width (cm): 2.54 cm
• Assembled Width (in): 1.00000054 in
• Assembled Width (mm): 25.40 mm
• Certifications: No Certifications
• End 1 Diameter Nominal: 20 mm
• End 1 Type: Barb
• End 2 Diameter Nominal: 20 mm
• End 2 Type: Threaded
• Fitting Angle: 0°
• Maximum Pressure (psi): 150 lb/in²
• Maximum Temperature (°F): 572.00 °F
• Minimum Temperature (°F): -4.00 °F
• Number of Outlets: 2
• Number of Pieces: 1
• Outlet Valve Type: Valves Not Included
• Package Depth (cm): 7.90 cm
• Package Depth (in): 3.11 in
• Package Height (cm): 2.50 cm
• Package Height (in): 0.98 in
• Package Weight (kg): 0.09 kg
• Package Weight (lb): 0.21 lb
• Package Width (cm): 2.50 cm
• Package Width (in): 0.98 in
• Pipe Diameter Nominal: 20 mm
• Pipe Schedule: Not Applicable
• Pipe Type Compatibility: Galvanized Steel
• Pipe or Fitting Type: Adapter
• Primary Colour: Grey
• Primary Material: Galvanized Steel
• Product Use(s): Cold Potable Plumbing, Hot Potable Plumbing
