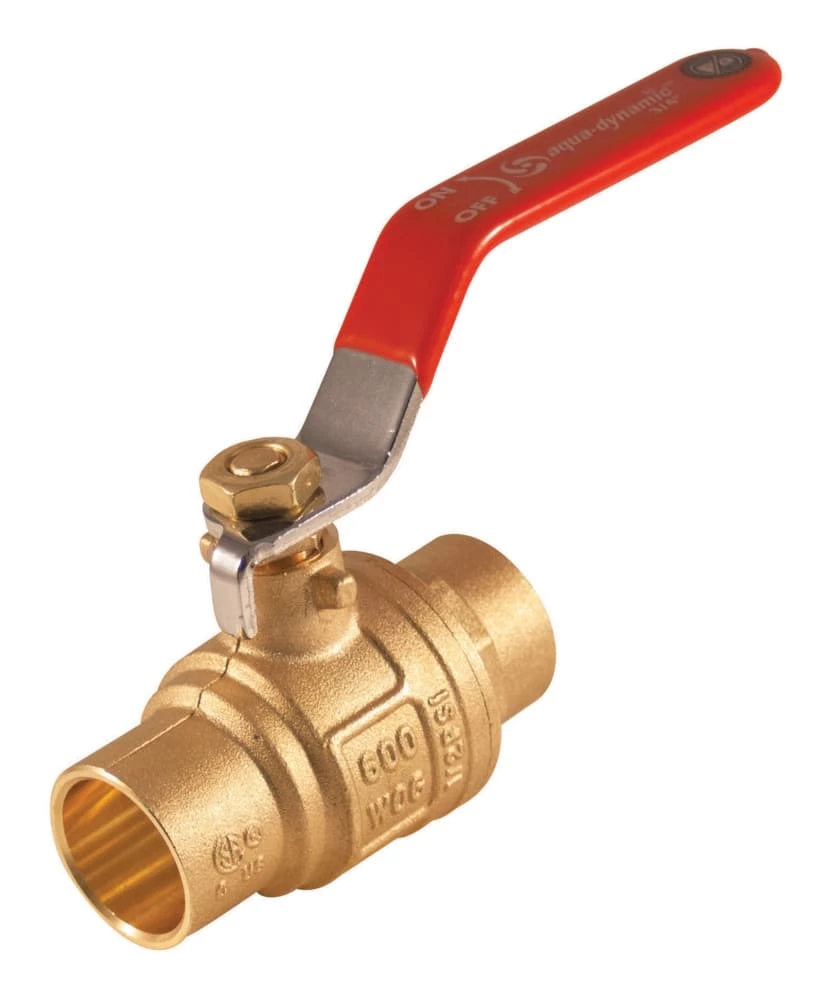

Aqua-Dynamic Brass Solder Ball Valve

Features

• Aqua-Dynamic Brass Solder Ball Valve has a full port, forged brass, chrome plated body
• Quarter turn operation, galvanized handle with vinyl grip
• Tested to 150 PSI WSP steam, 600 PSI non-shock WOG
• For use from -20 to 350 degrees Fahrenheit
• Solder ends comply with ANSI B16.18

Specifications

• Advanced Features: No Advanced Features
• Assembled Height (cm): 6.50 cm
• Assembled Height (ft): 0.21 ft
• Assembled Height (in): 2.56 in
• Assembled Length (cm): 5.60 cm
• Assembled Length (ft): 0.18 ft
• Assembled Length (in): 2.20 in
• Assembled Weight (kg): 0.19 kg
• Assembled Weight (lb): 0.41 lb
• Assembled Width (cm): 10.50 cm
• Assembled Width (in): 4.13 in
• Assembled Width (mm): 104.98 mm
• Certifications: No Certifications
• Connection Type: Sweat
• Inlet Size (in): 0.50 in
• Inlet Size (mm): 12.70 mm
• Maximum Pressure (psi): 600 lb/in²
• Number of Pieces: 1
• Outlet Size (in): 0.50 in
• Outlet Size (mm): 12.70 mm
• Package Depth (cm): 5.59 cm
• Package Depth (in): 2.20 in
• Package Height (cm): 6.50 cm
• Package Height (in): 2.56 in
• Package Weight (kg): 0.19 kg
• Package Weight (lb): 0.41 lb
• Package Width (cm): 10.49 cm
• Package Width (in): 4.13 in
• Pipe Type Compatibility: Copper
• Primary Colour: Brown
• Primary Material: Brass
• Valve Type: Ball
