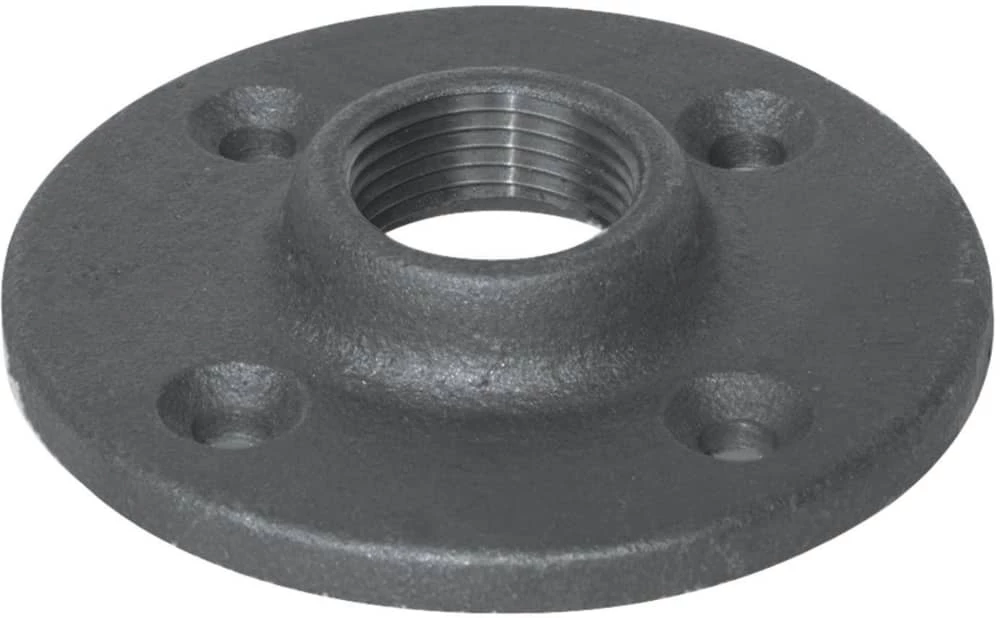

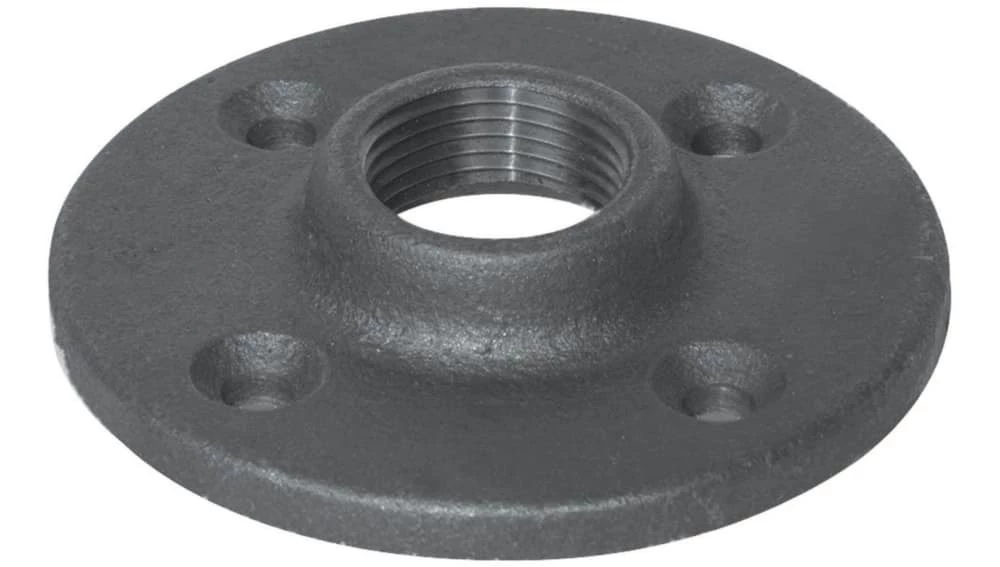

Aqua-Dynamic Black Galvanized Fitting, Flange, 3/4-in

Features

• Aqua-Dynamic Black Galvanized Fitting fastens to floors
• Made with black iron
• Type: Flange
• Size: 3/4″

Specifications

• Accessories List: No Accessories Included
• Actual Inner Diameter (cm): 2.81 cm
• Actual Inner Diameter (in): 1.11 in
• Actual Inner Diameter (mm): 28.10 mm
• Actual Outer Diameter (cm): 3.70 cm
• Actual Outer Diameter (in): 1.46 in
• Actual Outer Diameter (mm): 37.00 mm
• Advanced Features: No Advanced Features
• Assembled Height (cm): 1.65 cm
• Assembled Height (ft): 0.05 ft
• Assembled Height (in): 0.65 in
• Assembled Length (cm): 8.69 cm
• Assembled Length (ft): 0.29 ft
• Assembled Length (in): 3.42 in
• Assembled Weight (kg): 0.22 kg
• Assembled Weight (lb): 0.5 lb
• Assembled Width (cm): 8.69 cm
• Assembled Width (in): 3.4200018468 in
• Assembled Width (mm): 86.87 mm
• Certifications: No Certifications
• End 1 Diameter Nominal: 20 mm
• End 1 Type: Threaded
• End 2 Diameter Nominal: 20 mm
• End 2 Type: Threaded
• Fitting Angle: 0°
• Maximum Pressure (psi): 150 lb/in²
• Maximum Temperature (°F): 572.00 °F
• Minimum Temperature (°F): -4.00 °F
• Number of Outlets: 2
• Number of Pieces: 1
• Outlet Valve Type: Valves Not Included
• Package Depth (cm): 8.70 cm
• Package Depth (in): 3.43 in
• Package Height (cm): 1.70 cm
• Package Height (in): 0.67 in
• Package Weight (kg): 0.22 kg
• Package Weight (lb): 0.49 lb
• Package Width (cm): 8.70 cm
• Package Width (in): 3.43 in
• Pipe Diameter Nominal: 20 mm
• Pipe Schedule: Not Applicable
• Pipe Type Compatibility: Black Iron
• Pipe or Fitting Type: Closet Flange
• Primary Colour: Black
• Primary Material: Black Iron
• Product Use(s): Drain, Waste, and Vent
