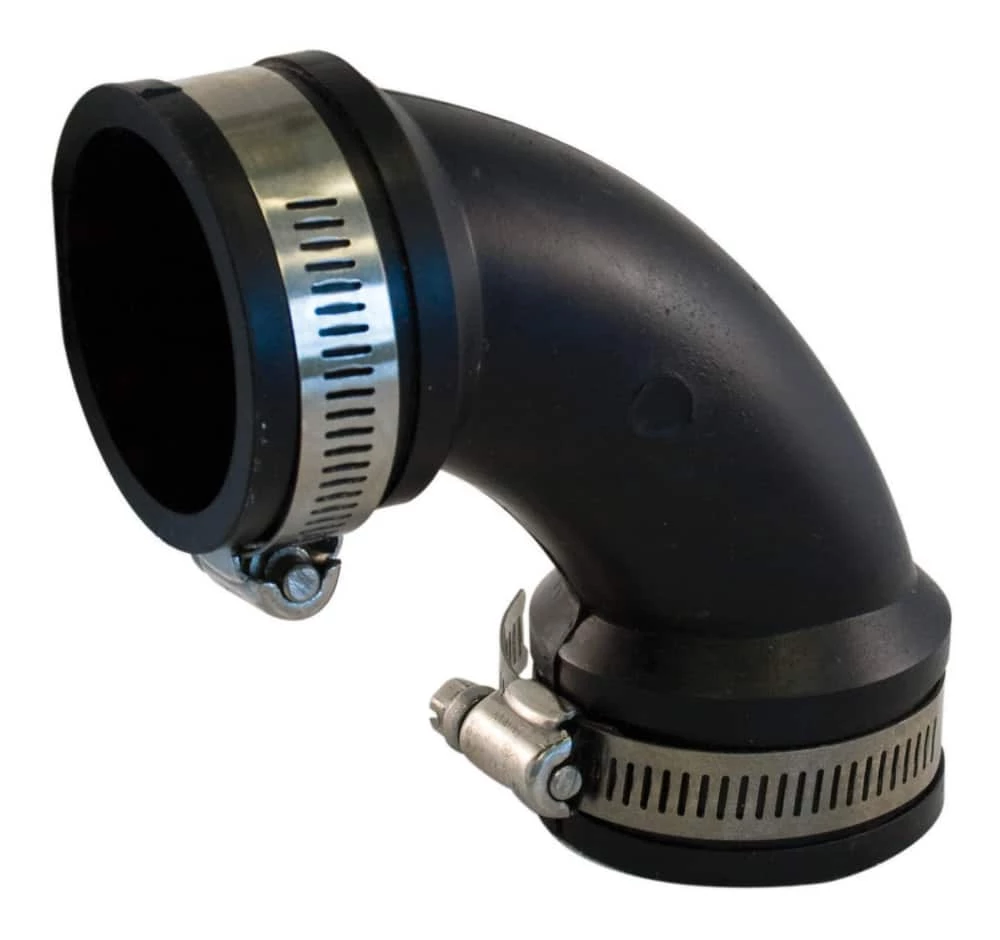

Aqua-Dynamic AquaDynamic Flexible Elbow, 1-1/2-in

Features

• AquaDynamic Flexible Elbow offers 300 series stainless steel band assembly
• Made with flexible PVC construction
• Size: 1 -1/2″ (4 cm)

Specifications

• Accessories List: No Accessories Included
• Actual Inner Diameter (cm): 4.50 cm
• Actual Inner Diameter (in): 1.77 in
• Actual Inner Diameter (mm): 45.00 mm
• Actual Outer Diameter (cm): 5.50 cm
• Actual Outer Diameter (in): 2.17 in
• Actual Outer Diameter (mm): 55.00 mm
• Advanced Features: No Advanced Features
• Assembled Height (cm): 6.35 cm
• Assembled Height (ft): 0.21 ft
• Assembled Height (in): 2.50 in
• Assembled Length (cm): 16.51 cm
• Assembled Length (ft): 0.54 ft
• Assembled Length (in): 6.50 in
• Assembled Weight (kg): 0.18 kg
• Assembled Weight (lb): 0.4 lb
• Assembled Width (cm): 7.62 cm
• Assembled Width (in): 3.0000016200000004 in
• Assembled Width (mm): 76.20 mm
• Certifications: No Certifications
• End 1 Diameter Nominal: 38 mm
• End 1 Type: Smooth
• End 2 Diameter Nominal: 38 mm
• End 2 Type: Smooth
• Fitting Angle: 90°
• Maximum Pressure (psi): 4.3 lb/in²
• Maximum Temperature (°F): 120.20 °F
• Minimum Temperature (°F): 32.00 °F
• Number of Outlets: 2
• Number of Pieces: 1
• Outlet Valve Type: Valves Not Included
• Package Depth (cm): 16.51 cm
• Package Depth (in): 6.50 in
• Package Height (cm): 6.35 cm
• Package Height (in): 2.50 in
• Package Weight (kg): 0.18 kg
• Package Weight (lb): 0.40 lb
• Package Width (cm): 7.62 cm
• Package Width (in): 3.00 in
• Pipe Diameter Nominal: 38 mm
• Pipe Schedule: Not Applicable
• Pipe Type Compatibility: ABS Plastic, Black Iron, Copper, CPVC, Galvanized Steel, PEX, Polyethylene, PVC
• Pipe or Fitting Type: Elbow
• Primary Colour: Black
• Primary Material: CPVC
• Product Use(s): Cold Potable Plumbing, Hot Potable Plumbing
